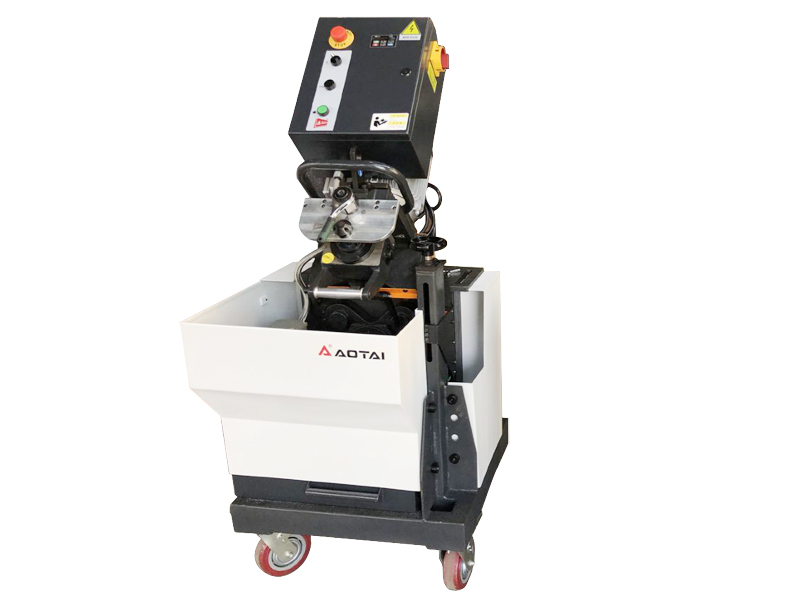

SKF-900 AUTOMATIC FEEDING PLATE BEVELING MACHINE
SKF-900 Automatic plate beveling machine, designed for metal plate prep-welding, to beveling, chamfering and milling. For small size plate, machine fixed, plate feed and process automatically; For large size plate, plate fixed, machine along the edge of the plate process automatically.
SKF-900 Automatic plate beveling machine, designed for metal plate prep-welding, to beveling, chamfering and milling. For small size plate, machine fixed, plate feed and process automatically; For large size plate, plate fixed, machine along the edge of the plate process automatically. The machine can be suspended process without a base when the working height is not standard, This machine adopts milling method, a powerful, widely used steel plate grooving equipment. Small volume, light weight, move easily, simple operation, the essential production equipment of nuclear industry, shipbuilding, pharmaceutical machinery, pressure vessels and other industries fields.
FEATURES
1、Beveling shape: V, Y,K,X.
2、Angle adjustable: 15deg to 60deg.
3、Surface roughness: Ra3.2-Ra6.3
4、Cold cutting, don't change the material of plate.
5、Plate thickness range 8-50mm, maximum groove slope width is 45mm
6、Suitable for carbon steel, stainless steel, alloy steel, Cast iron, hard plastic, etc.
7、Double digit display control system, cutting speed and feeding speed adjustable.
SPECIFICATION
| Electric supply |
AC 380V 50HZ 3P |
Max process speed |
3000mm/min |
|
Cutting motor power |
4.0KW |
Feeding speed |
0-1000mm/min |
|
Feed motor power |
0.37KW |
Plate length |
≥300mm |
|
Beveling angle |
15°~60° |
Plate width |
≥100mm |
|
Max land Width |
50mm |
Plate thickness |
8~50mm |
|
Beveling depth |
5-30mm |
Single depth |
5mm |
|
Surface roughness |
Ra3.2~Ra12.5 |
Weight |
210KG |
Above parameters just for reference only, not acceptance criteria
TOOLING:

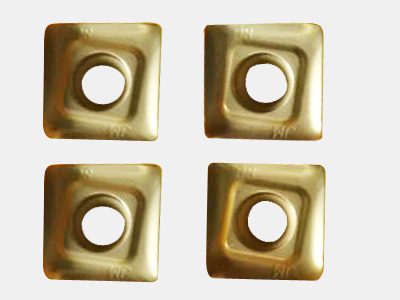

milling cutter
 |
 |
|

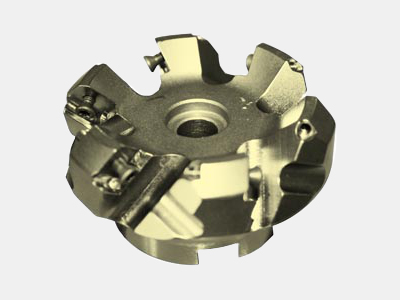

Tool carrier |

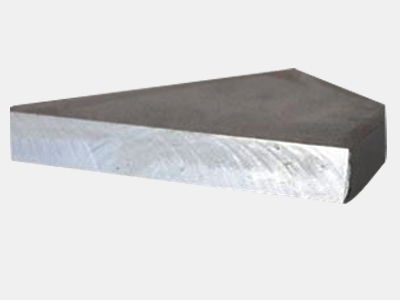

High quality groove surface |
USING IN 3 WAYS:
1.mounted on its trolley, for chamfering on medium and big size sheets;
2. Bench version, for chamfering on work-pieces that can be handled manually
3.“hanged” version, without trolley, when it is not possible to work at standard heights
