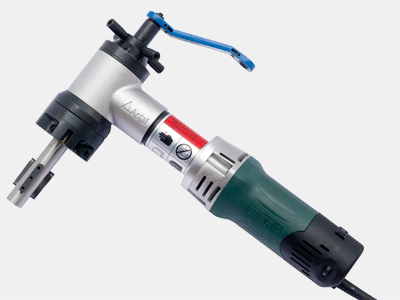

T-PIPE BEVELING MACHINE

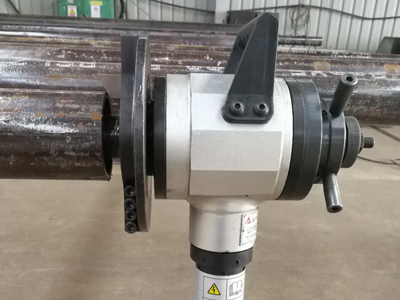

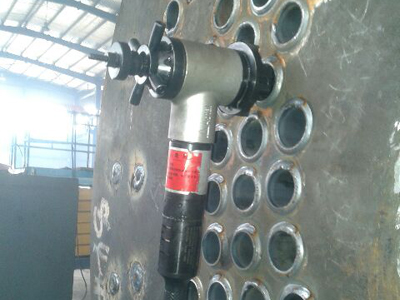

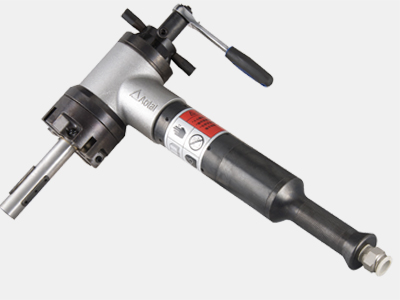

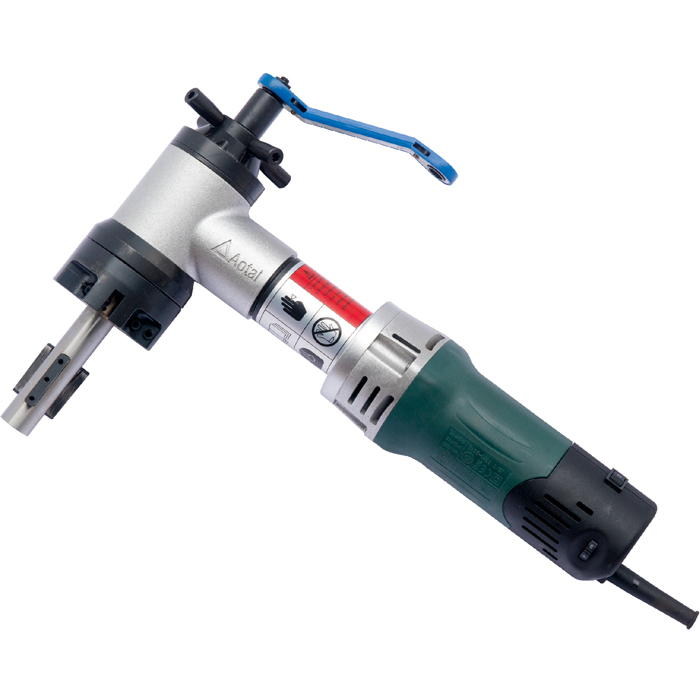

The ID mounted T-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts “T” shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.
Range for pipe ID 12.5-330mm
OVERVIEW
The ID mounted T-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts "T" shape structure design to realize the minimal radial working space. With the light
weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power.
FEATURES
1、Cold cutting, without influence the material of the pipe
2、ID mounted, adopt T structure
3、Varity of beveling shape: U, Single-V, double-V,J beveling
4、It can also be used for repairing inner wall and deep hole processing.
5、Working range:12.5-330mm
6、Driven motor: Pneumatic and Electric
7、Customized machine is acceptable
CAPABILTY
1、Pipe end beveling
2、Inside beveling
3、Pipe facing

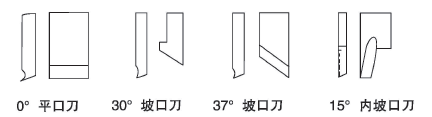

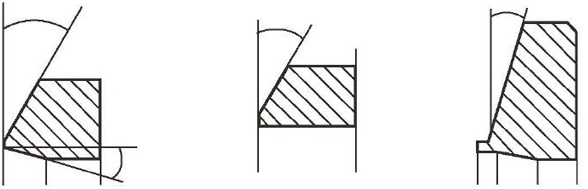

BEVELING SHAPE
MODEL AND SPECIFICATION
|
Model |
Working range ID mm |
thickness mm |
power kw |
Rotating speed rpm |
|
|
Electric |
Pneumatic |
||||
|

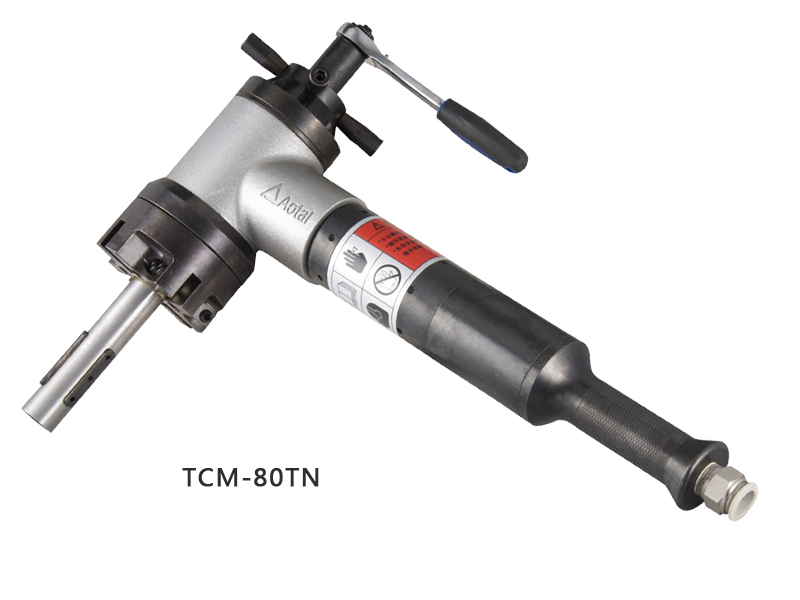

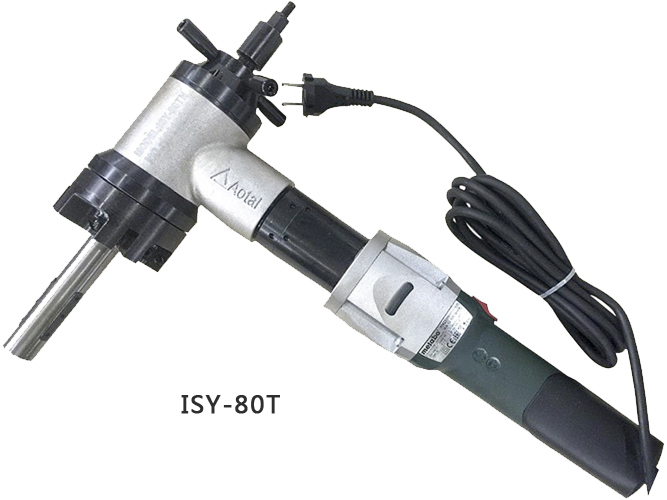

ISY-80T |
TCM-80T |
Ф28-76 |
≤15 |
0.90 |
53 |
|
ISY-90T |
TCM-90T |
Ф36-90 |
≤15 |
1.43 |
50 |
|
ISY-28TN-1 |
TCM-28TN-1 |
Ф12.5-15 |
≤3 |
1.43 |
70 |
|
ISY-28TN-2 |
TCM-28TN-2 |
Ф15-20 |
≤5 |
1.43 |
70 |
|
ISY-28TN-3 |
TCM-28TN-3 |
Ф20-28 |
≤6 |
1.43 |
70 |
|

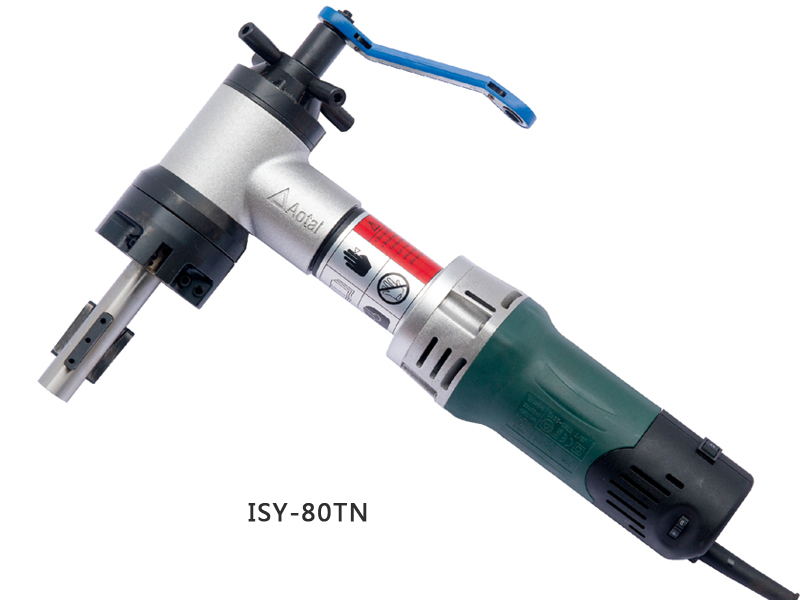

ISY-80TN |
TCM-80TN |
Ф26-79 |
≤15 |
1.43 |
70 |
|
SDC-120T |
TCM-120T |
Ф45-105 |
≤20 |
1.43 |
34 |
|
SDC-150TN |
TCM-150TN |
Ф60-170 |
≤20 |
1.43 |
34 |
|

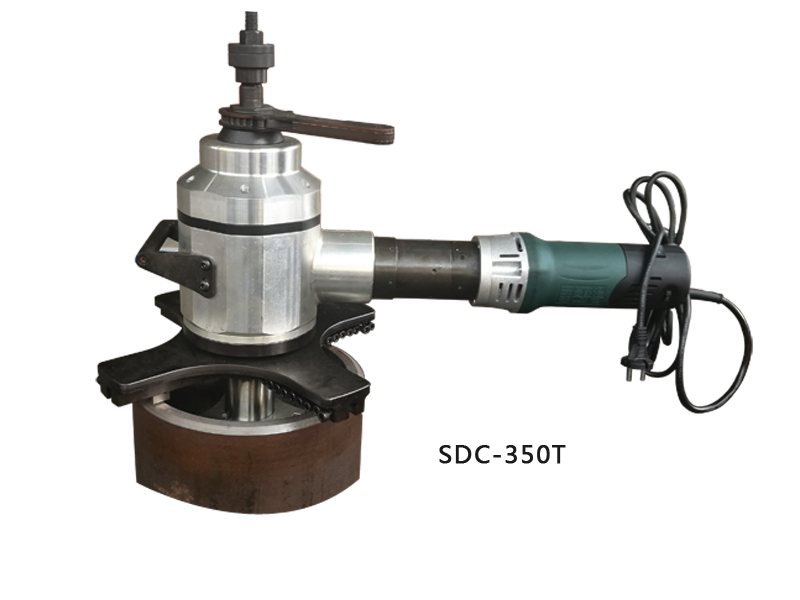

SDC-350T |
TCM-350T |
Ф150-330 |
≤20 |
1.43 |
14 |
Above parameters just for reference only, not acceptance criteria
|
Electric：
|
Pneumatic: |
|
|
|
TOOLING
other beveling shape, angle and pipe material, please declare before order
Integrated tool
can be reused by grinding
Material：M42 and M35
Standard supply
Insert tool
Insert same, different angle holder
HolderMaterial: HSS ;
Insert material: Cermet or Carbide
Optional
On-site
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

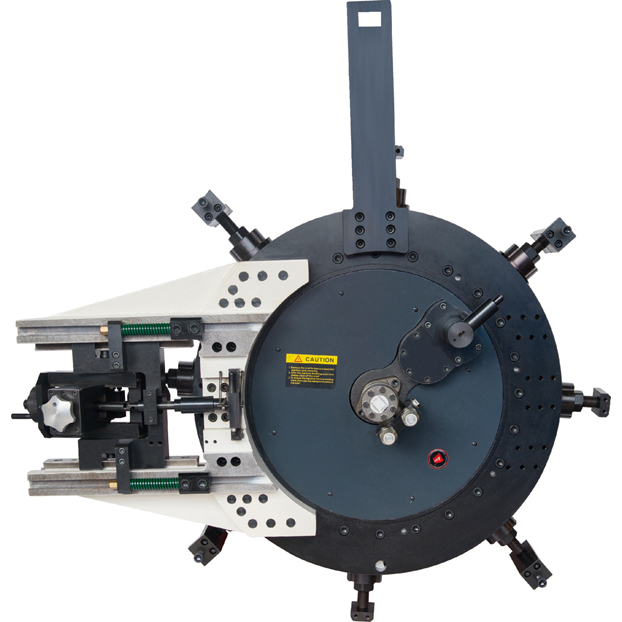

II -PIPE BEVELING MACHINE

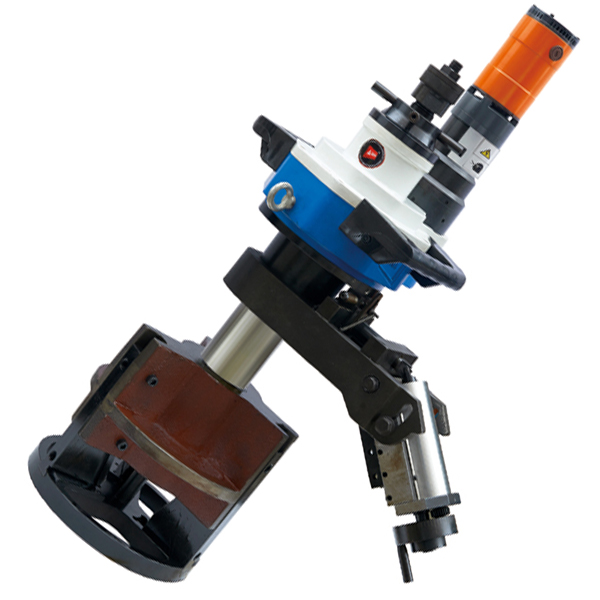

II-PIPE BEVELING MACHINE is a portable ID mounted machine, which adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces.
Range for pipe ID 80-820mm
Y-PIPE BEVELING MACHINE
The ID mounted Y-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts “Y” shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.
Range for pipe ID 60-820mm
T-PIPE BEVELING MACHINE
The ID mounted T-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts “T” shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.
Range for pipe ID 12.5-330mm
ATCM PIPE FACING MACHINE

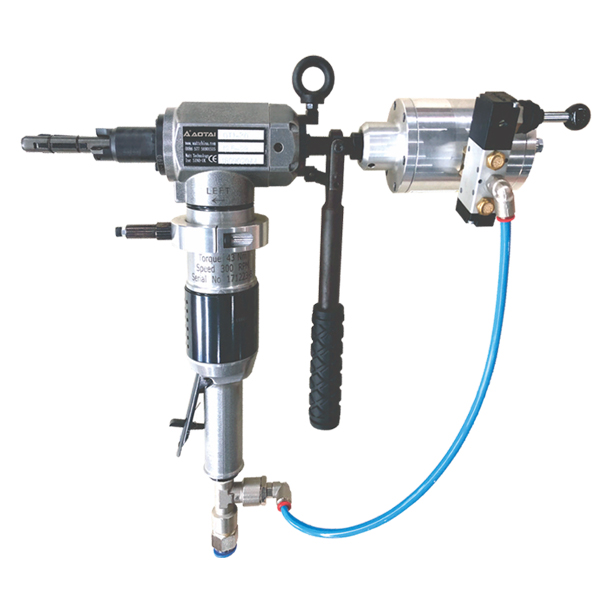

ATCM pneumatic fast beveling machine is designed for bulk small dia. pipes. The machine works by the means of ID mounted, Pneumatic clamping and driving. Manual feeding and Auto feeding both are optional. The machine is used to solve to face, bevel and remove the ending of all welding pipes. With the feature of light weight, easy operation, high efficiency, the machine is widely used for many lines of bulk pipe facing and beveling, eg.heat exchanger, water wall,power plant,pharmacy,brewing, refrigeration and so on.
Range for ID 12-40mm
