OCF- CNC Pipe Beveling Machine
OCF was developed pipe end beveling High speed，It is new equipment of pipe prefabrication.It adopt SIEMENS CNC system, hydraulic clamping , machine up/down. It process different types bevel shape according to customer’s requirement: beveling U, V, J, Facing ,Counter-boring,etc.
OVERVIEW
OCF was developed pipe end beveling High speed，It is new equipment of pipe prefabrication.It adopt SIEMENS CNC system, hydraulic clamping , machine up/down. It process different types bevel shape according to customer’s requirement: beveling U, V, J, Facing ,Counter-boring,
etc.
FEATURES
1.High speed pipe beveling machine;
2.Suitable for large quantities of pipe beveling process;
3.SIEMENS CNC system, easy to do compound beveling type;
4.Operate in touch screen, one button operation;
5.Pipe positioning system and pipe converyer optional;
5.Up/down design, perfectly adapted to different diameter;
7.Hydraulic clamping, double V clamping block
SPECIFICATION:
|
Model |
Working Range |
Thickness |
Mix.length |
Rotation |
Power |
Tool stroke |
|
OD mm |
mm |
mm |
rpm |
kw |
mm |
|
|

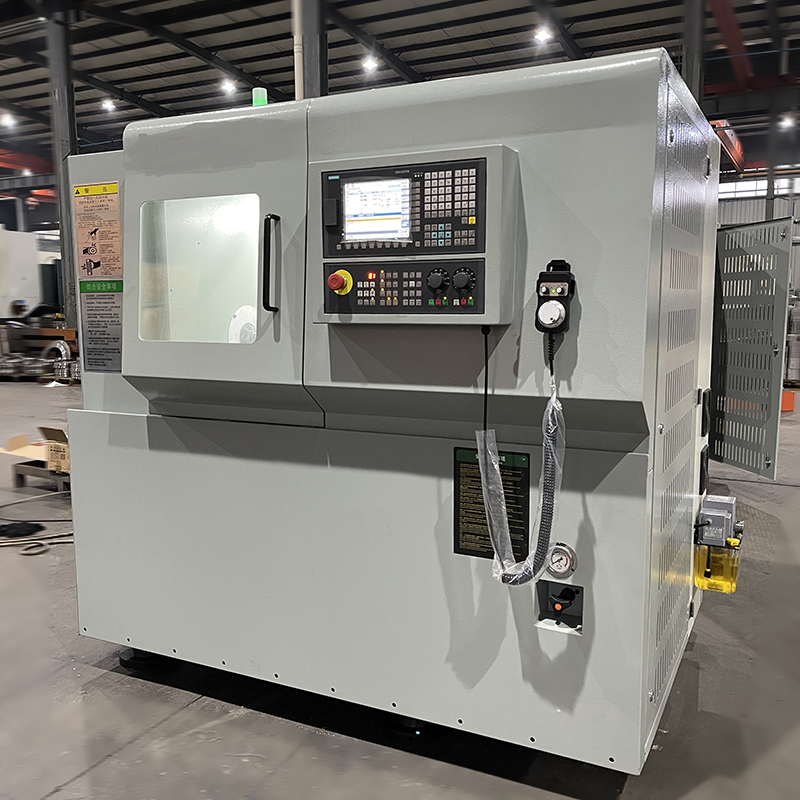

OCF-80 |
35-114 |
4-40 |
250 |
200 |
5.5 |
150 |
|

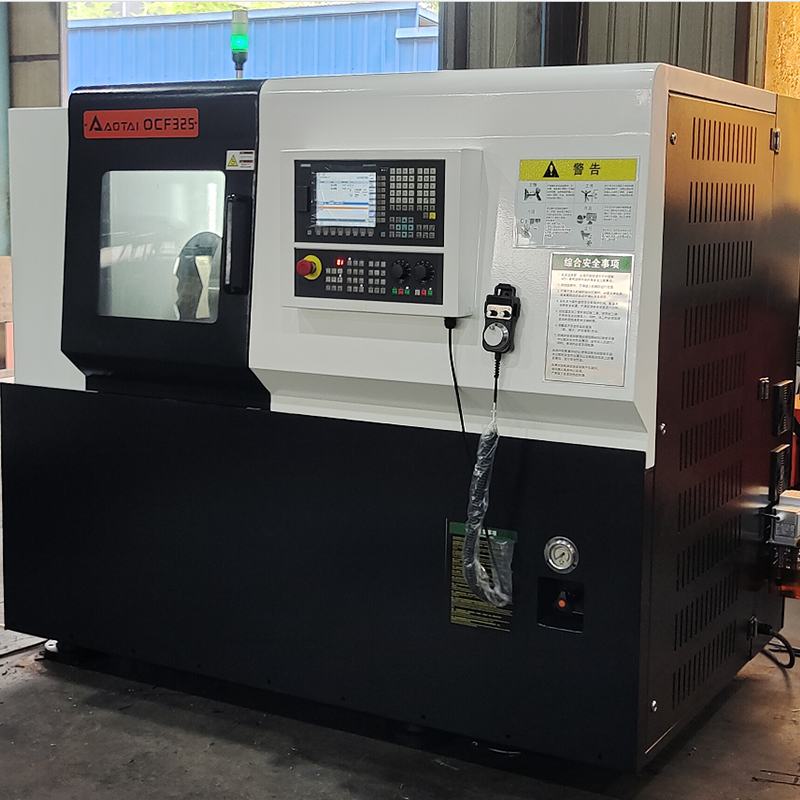

OCF-325 |
50-325 |
4-100 |
320 |
150 |
7.5 |
200 |
|

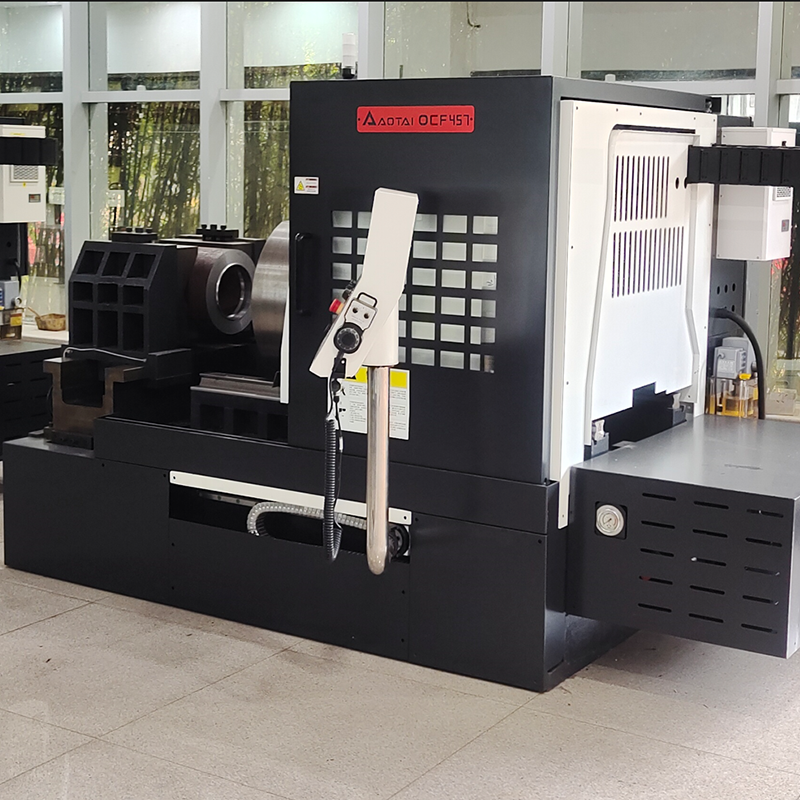

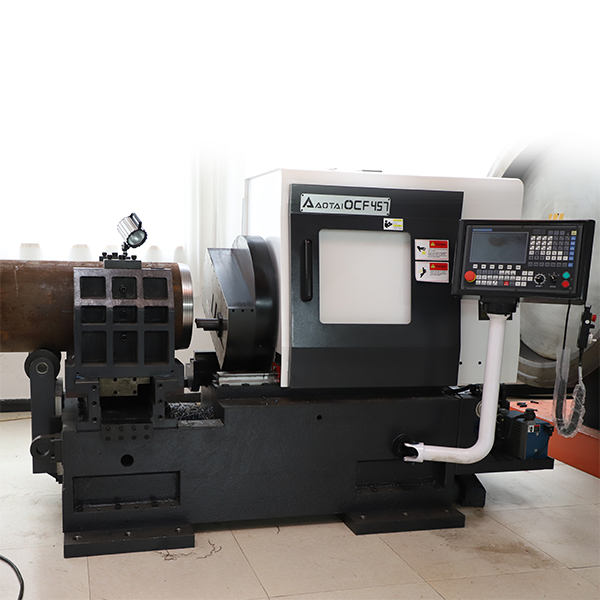

OCF-457 |
168-457 |
4-100 |
600 |
110 |
7.5 |
200 |
|
OCF-610 |
325-610 |
4-100 |
600 |
55 |
7.5 |
200 |
|
OCF-820 |
457-820 |
4-100 |
700 |
45 |
30 |
300 |
|
OCF-1220 |
508-1220 |
4-100 |
700 |
40 |
45 |
300 |
Power requirement：380V,50-60Hz,3P
Up/down travel：200mm
Angle deviation：±0.5
Vertical deviation：±0.5mm/300mm
Options of form type and insert type tools
Available for cutting all thickness and material of pipe and beveling at any required angle.

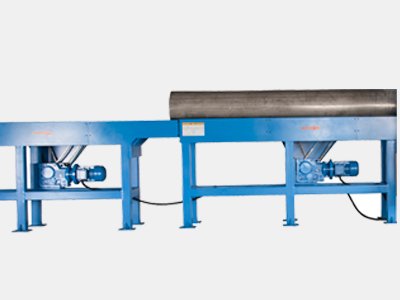

OPTION PIPE CONVEYER
According to the need to customize.

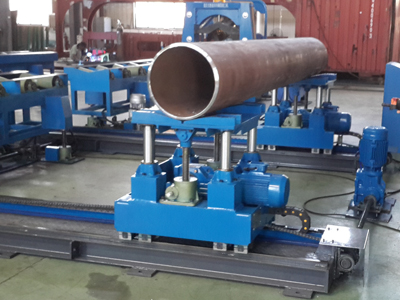

Optional pipe conveyer and automatic length setting systems, be formulated with highly efficient logistics system, and form
pipe cutting and beveling prefabricated production line
*Customizable size and option the automatic or manual feeding.
