ID MOUNTED FLANGE FACING MACHINE
The ID mounted flange facing machine is designed for the Flange facing, seal groove, serrated finish, weld prep. and counterboring. with the latest line and ball screw technology, the equipment adopts the modular design concept as a whole. Each step of design takes the field processing as the starting point.
Range for flange ID 200-4521mm
OVERVIEW
The ID mounted flange facing machine is designed for the Flange facing, seal groove, serrated finish, weld prep. and counterboring. with the latest line and ball screw technology, the equipment adopts the modular design concept as a whole. Each step of design takes the field processing as the starting point. This machine is widely used in the flange connecting of Petroleum, chemical, natural gas and nuclear power. With the light weight,this machine is helpful for the on-site maintance. It ensures the high security and efficiency.
FEATURES
1、light weight, easy to carry, fast installation and easy to use；

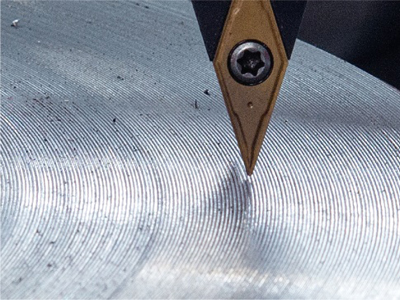

2、Stock finish, smooth finish, gramophone finish, on flanges, valve seats and gaskets.
3、Boring and milling tools are optional
4、Driven motor：Pneumatic, NC driven, Hydraulic driven
5、Latest linear technology for durability and repeatable accuracy
6、Standard stock finishes carried out with step: 0.2 - 0.4 -0.6 - 0.8 mm
|
Model |
Clamping range |
Working range |
Tool stroke |
Rotating |
||
|
Pneumatic |
NC |
Hydraulic |
ID mm |
mm |
mm |
rpm |
|

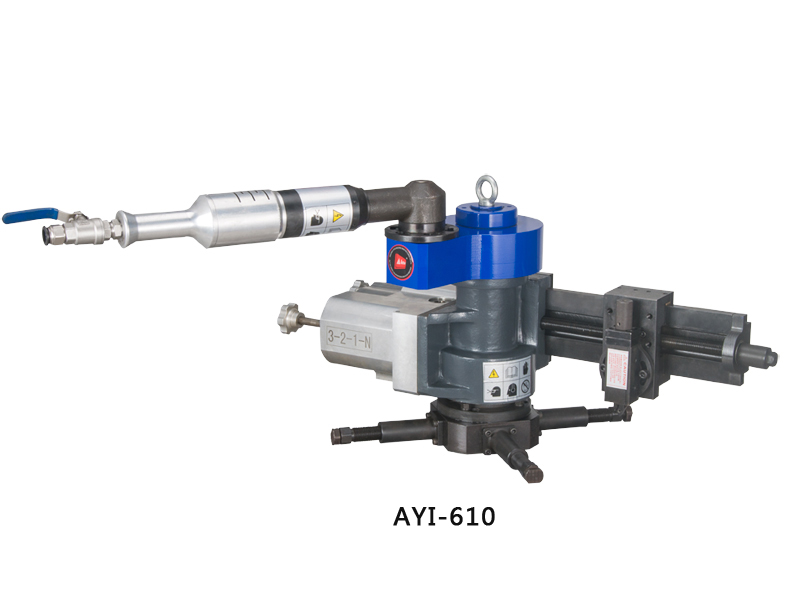

AYI-610 |
SYI-610 |
HYI-610 |
Ф200-500 |
Ф200-610 |
≤40 |
50 |
| AYI-610-II | -- | -- |
Ф50-560 |
Ф50-570 |
≤40 |
60 |
|
AYI-1016 |
SYI-1016 |
HYI-1016 |
Ф508-914 |
Ф508-1016 |
≤100 |
24 |
| AYI-1000-II |
SYI-1000-II |
HYI-1000-II |
Ф290-813 |
Ф300-1000 |
≤100 |
24 |
|
AYI-1420 |
SYI-1420 |
HYI-1420 |
Ф610-1016 |
Ф610-1420 |
≤100 |
20 |
| AYI-1500-II |
SYI-1500-II |
HYI-1500-II |
Ф550-1400 |
Ф560-1500 |
≤100 |
20 |
|

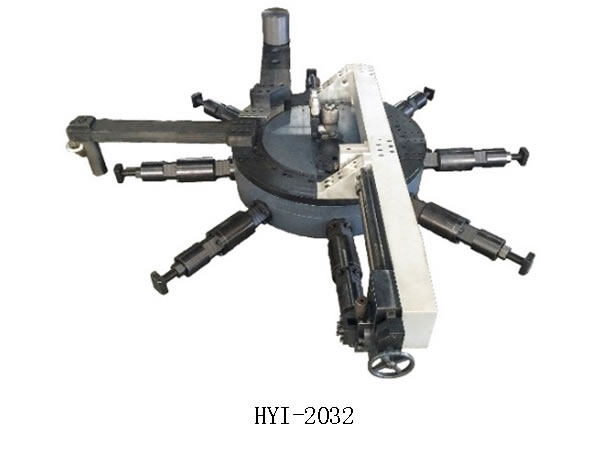

AYI-2032 |
SYI-2032 |
HYI-2032 |
Ф1168-1930 |
Ф1168-2032 |
≤100 |
15 |
|
AYI-3048 |
SYI-3048 |
HYI-3048 |
Ф2210-2810 |
Ф2210-3048 |
≤100 |
8 |
|
AYI-4521 |
SYI-4521 |
HYI-4521 |
Ф2210-4521 |
Ф2210-4521 |
≤100 |
6 |
Above parameters just for reference only, not acceptance criteria
POWER SUPPLIES
|
Pneumatic: Air requirement:1500-3000L/min @0.63-0.8Mpa Power：2HP,3HP,4HP Double motor for big model or heavy duty |
|
|
|
NC: |
|
|

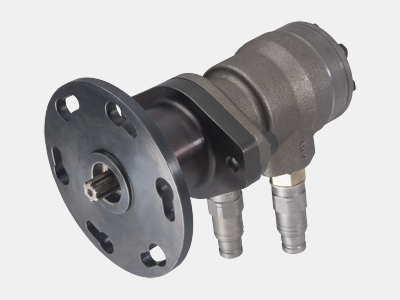

Hydraulic: Hydraulic requirement：28-50L/min @13Mpa Electric requirement: 380V 3PH 50/60Hz Rated Pressure：13MPa Rated flow:28L/min Max.Torque：380NM |
|
Material：Holder HSS ;
Insert: HSS-Co or Carbide
Type：Grooving，Facing，
|
|
|

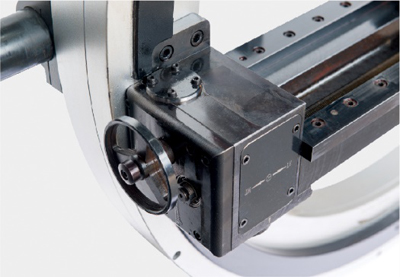

| Tool slide | Compound feed mechanism |
|
|
|
Sealing process |
milling |
