OSK ORBITAL PIPE CUTTING MACHINE
OSK orbital pipe cutting machine is the best choice for stainless steel thin-wall pipe cutting. This machine adopts Metabo motor drive to ensure strong power. It is necessary equipment for pipe welding prep. Optimize design, save space, operate simply, install quickly." Self-centering "type pipe clamping device,Saw blade cutting head can cut off the pipe by rotating around the steel pipe once a week
OVERVIEW
OSK orbital pipe cutting machine is the best choice for stainless steel thin-wall pipe cutting. This machine adopts Metabo motor drive to ensure strong power. It is necessary equipment for pipe welding prep. Optimize design, save space, operate simply, install quickly." Self-centering "type pipe clamping device,Saw blade cutting head can cut off the pipe by rotating around the steel pipe once a week. The end face is absolutely vertical without burrs, and the steel pipe is not deform, providing quality assurance for the welding of steel pipes. It can be used to cut pipe with carbon steel, alloy steel, non-ferrous metals, engineering plastics, etc., widely used in semiconductor, electronics, beer, pharmaceuticals, biotechnology, beverages, dairy, pressure vessels, chemical, oil and gas, ships, water treatment and other industries Processing.
FEATURES
1、Quickly install the blade
2、Cold cutting ,don't influence the pipe's material
3、Vertical incision without deformation, burr-free end surface
4、Deformable clamping device, automatic centering, quick clamping of the pipe
5、option beveling saw for pipe cutting and beveling
6、Unique orbital cutting, thin wall tube cutting best equipment
7、High safety, stationary pipe, cutting head rotation completed
8、Dry cutting, kept cleaning, be welded directly after cutting
9、Saw blade compatible with AXXAIR, +GF+, DCS and other brand pipe cutting machine
CAPABILTY
1、Pipe cut off
2、Pipe beveling
3、Cutting and beveling
SPECIFICATION
| Model | Working Range | Wall Thickness | Rotating | |
| Automatic | OD mm | CS mm | SS mm | rpm |
| OSK-120 | Ф15～120 | ≤12 | ≤4 | 80～120 |
| OSK-170 | Ф30～170 | ≤12 | ≤4 | 80～120 |

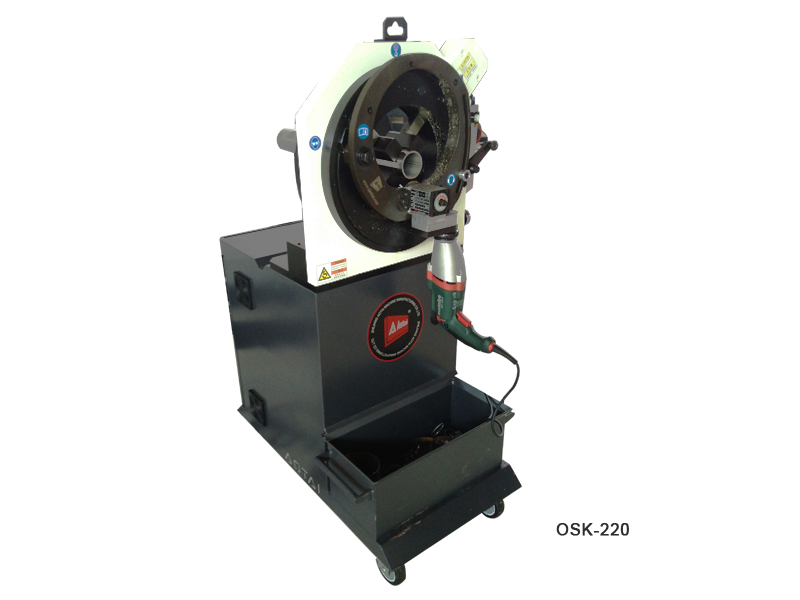

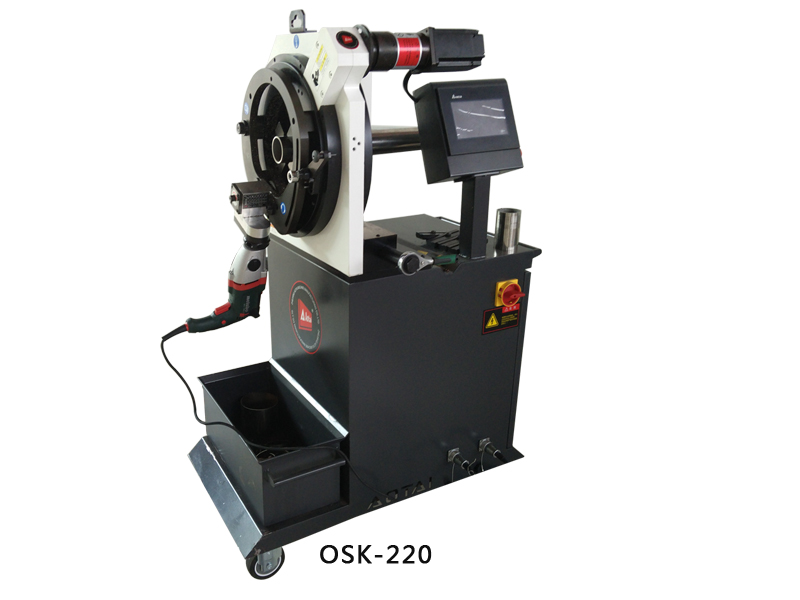

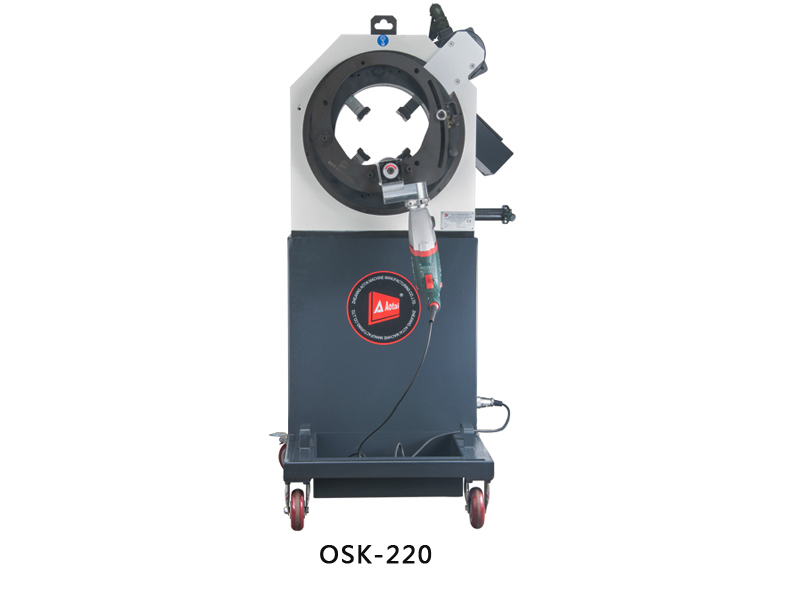

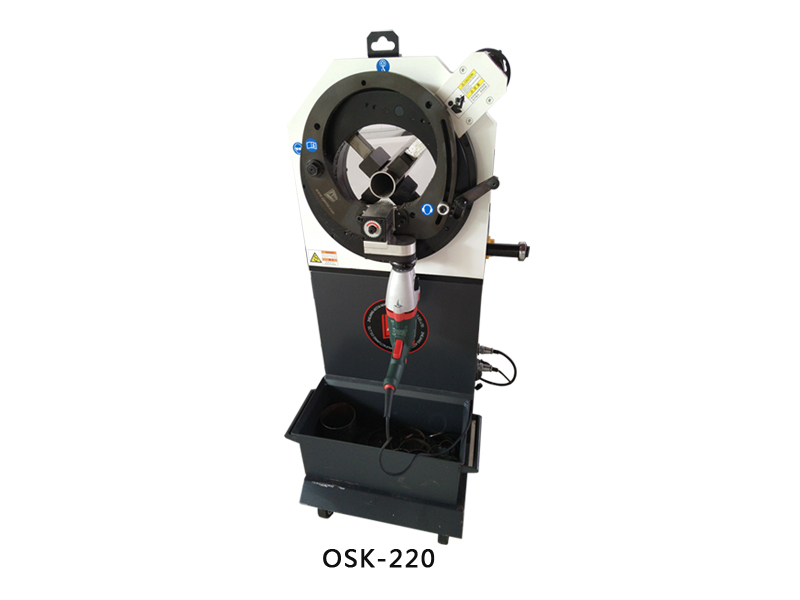

| OSK-220 | Ф60～225 | ≤12 | ≤4 | 80～120 |
| OSK-320 | Ф140～330 | ≤12 | ≤4 | 80～120 |
| OSK-420 | Ф215～420 | ≤12 | ≤4 | 80～120 |
| OSK-520 | Ф315～520 | ≤12 | ≤4 | 80～120 |
| OSK-620 | Ф346～630 | ≤12 | ≤4 | 80～120 |
| OSK-720 | Ф486～760 | ≤12 | ≤4 | 80～120 |
POWER SUPPLIES
|

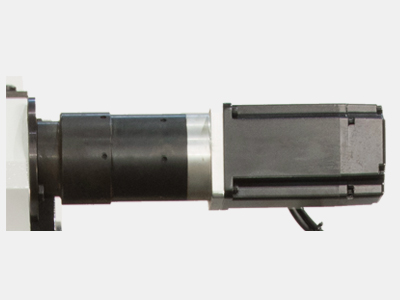

Feed motor： Servo motor Electric Requirements: 220-230V, 50-60Hz, 1P Power：0.75KW Speed: adjustable by program |

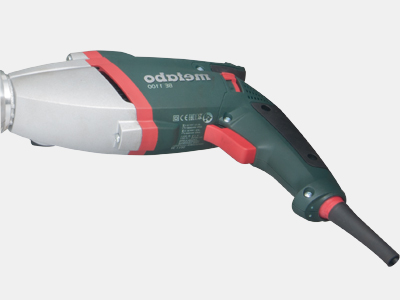

Saw blade drive motor： Brand: Metabo Electric Requirements: 220-230V, 50-60Hz, 1P Power：1.3KW Speed: 6-speed adjustable |
|
|
Material: M42

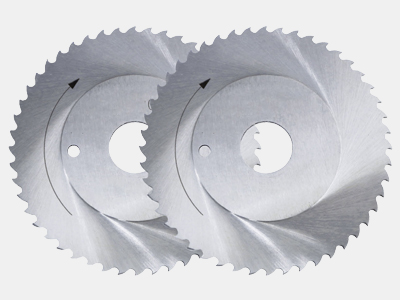

Standard: 2 cutting blades

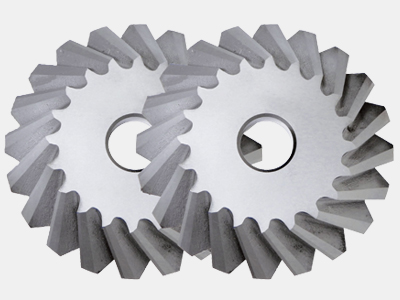

Optional:beveling saw blade 30°, 37°, 45°
|
|
| Standard: cutting blade | Optional: beveling saw blade |

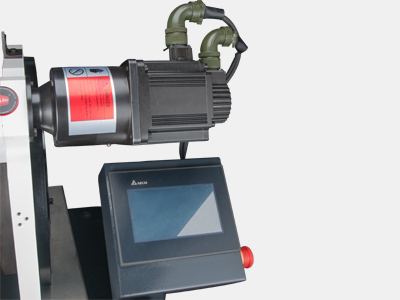

OSK: servo motor drive, program control

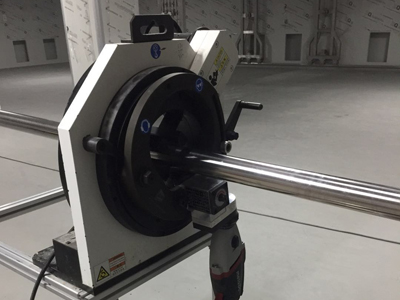

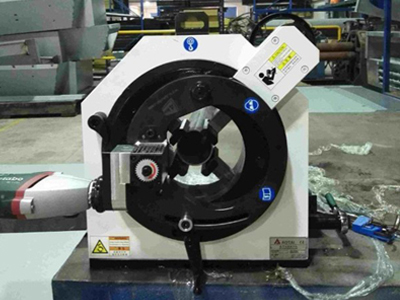

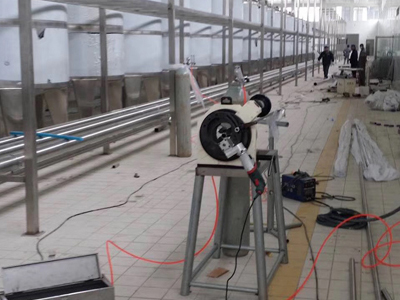

ON-SITE PROCESS
ON-SITE PROCESS
ON-SITE PROCESS
Standard with rip saw and fine saw，Fits pipe of different wall thicknesses，General rip saw are more suitable for cutting thicker tubes，fine saw suitable for cutting thin-walled pipe.
Inappropriate selection will result in blade heating. Reduce service life, or even bite-pipe phenomenon, deform the pipe
2.Rotating speed
Choosing the right cutterhead can improve the cutting performance and service life of the tool. Compared to the cutting stainless steel, the lower speed 80rpm is used, and the cutting carbon steel uses the higher speed 120rpm.
3.Cutting rotation direction
When the thin-walled tube 0.3-1mm, the tool rotates clockwise along the tube, which tends to cause deformation of the tube wall when the teeth engage the tube wall. The counterclockwise rotation of the tool (inverse planetary motion) can be avoided very well. This phenomenon
4.Cutting oil
The cutting machine can be processed without using any cutting oil, but the tool life will be greatly reduced.
Saw blade are consumables and their cost is high. In order to improve their cutting performance and service life, we recommend using cutting fluids during cutting. We choose non-toxic and harmless cutting oils, and use them to increase the tool life by 20-30%, if necessary before requisitioning
