C-II AUTO FEED PIPE BEVELING MACHINE

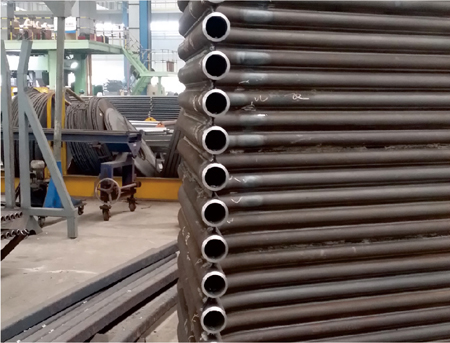

C-II Auto feed pipe facing machine was designed for the end beveling of narrow working site and small diameter pipe. OD mounted on the pipe, one clamping block just fit one size pipe, secured clamping automatic feeding, easy to operate. It was widely used in water wall, fins, boiler economizer, superheater, reheater, power plants and other industries, the single pipe and exhaust pipe facing and beveling
Range for pipe OD 14-76mm
OVERVIEW
C-II Auto feed pipe facing machine was designed for the end beveling of narrow working site and small diameter pipe. OD mounted on the pipe, one clamping block just fit one size pipe, secured clamping automatic feeding, easy to operate. It was widely used in water wall, fins, boiler economizer, superheater, reheater, power plants and other industries, the single pipe and exhaust pipe facing and beveling
FEATURES
1、Cold cutting, without influence the material of the pipe2、OD mounted,self centering,secured clamping,easy to operate
3、Aluminum body is light,suitable for working aloft.
4、5 models,working range:8-108mm
5、Optional special tool bit use for pipe inner thread
6、Driven motor: Pneumatic and Electric
CAPABILTY
1、Pipe beveling2、Pipe facing
BEVELING SHAPE
SPECIFICATION
| Model |
Range |
Pipe thickness |
Rotating |
Tool stroke |
Body thickness |
|
OD mm |
mm |
rpm |
mm |
mm |
|
|
ISC-53-II |
Φ14-53 |
≤12 |
0-58 |
0-20 |
54 |
|
ISC-76-II |
Φ25-76 |
≤12 |
0-54 |
0-20 |
58 |
Above parameters just for reference only, not acceptance criteria
CLAMPING BLOCK
| Model | ISC-53-II | |||||||
| Working range | Φ14 | Φ20 | Φ25.4 | Φ32 | Φ38 | Φ42 | Φ45 | Φ53 |
| Model | ISC-76-II | |||||||
| Working range | Φ25.4 | Φ32 | Φ38 | Φ42 | Φ45 | Φ57 | Φ63 | Φ76 |
| Model | ISC-159-II | |||||||
| Working range | Φ114 | Φ127 | Φ133 | Φ140 | Φ159 | Φ168 | ||
one clamping block just fit one size pipe
Standard with four diameter clamping block, more specifications please inquire
POWER SUPPLIES
METABO motor，
Electric requirement：220-230V 1PH 50/60HZ
Power:1.3KW
TOOLING
other beveling shape, angle and pipe material, please declare before order
Integrated tool
can be reused by grinding
Material：M42 and M35
Standard supply
Insert tool
Insert same, different angle holder
Holder Material: HSS ;
Insert material: Carbide
