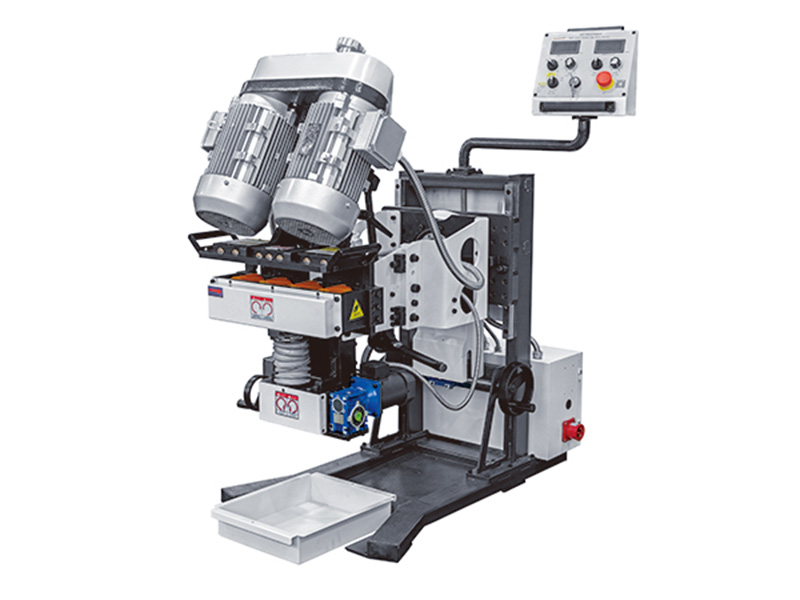

SKF-840 AUTOMATIC FEEDING PLATE BEVEVING MACHINE
SKF-840 Automatic plate beveling machine, designed for metal plate prep-welding, to beveling, chamfering and milling.This machine adopts milling method, a powerful, widely used steel plate grooving equipment. Small volume, light weight, move easily, simple operation, the essential production equipment of nuclear industry, shipbuilding, pharmaceutical machinery, pressure vessels and other industries fields.
OVERVIEW
SKF-840 Automatic plate beveling machine, designed for metal plate prep-welding, to beveling, chamfering and milling.This machine adopts milling method, a powerful, widely used steel plate grooving equipment. Small volume, light weight, move easily, simple operation, the essential production equipment of nuclear industry, shipbuilding, pharmaceutical machinery, pressure vessels and other industries fields.
FEATURES
Beveling shape: V, Y,K,X
Beveling angle: 0° -±60°
Surface roughness: Ra3.2-Ra6.3
Cold cutting, don't change the material of plate.
The cutter head can be turned over 180°，easy to bevel plate double side
Suitable for carbon steel, stainless steel, alloy steel, Cast iron, hard plastic, etc.
SPECIFICATION
|
Electric supply |
AC 380V 50HZ 3P |
Total power |
6.52KW |
|
Spindle rotation |
500-1400rpm |
Feeding speed |
0-1500mm/min |
|
Clamping Thickness |
6-80mm |
Clamping width |
≥80mm |
|
Beveling angle |
0°-±60° |
Plate Length |
≥300mm |
|
Beveling width |
0-70mm |
Single bevel width |
0-20mm |
|
Cutter diameter |
Ø80mm |
Insert Qty. |
6pcs |
|
Working height |
800-810mm |
Travel space |
1200*800mm |
|
Dimension |
130*84*145cm |
Gross Weight |
380KG |
Above parameters just for reference only, not acceptance criteria
