OCD High speed pipe beveling machine
This series of beveling machine tools were developed aims at large quantities of pipe end beveling processing，It is new equipment of pipe prefabrication. Bevel pipe fast, auto-center hydraulic clamping system, can match main machine auto-up/down system to suit different diameter pipes to use, suitable for bevel processing of all kinds of carbon steels, stainless steels, alloy steels, etc. Can bevel different types of shape according to customer’s requirement: U, V, J, Y, X,etc. excellent quality of beveling, efficient working, easy to operate.
OVERVIEW
OCD High speed pipe beveling machine:This series of beveling machine tools were developed aims at large quantities of pipe end beveling processing，It is new equipment of pipe prefabrication. Bevel pipe fast, auto-center hydraulic clamping system, can match main machine auto-up/down system to suit different diameter pipes to use, suitable for bevel processing of all kinds of carbon steels, stainless steels, alloy steels, etc. Can bevel different types of shape according to customer’s requirement: U, V, J, Y, X,etc. excellent quality of beveling, efficient working, easy to operate.
FEATURES
1、High speed pipe beveling machine
2、Suitable for large quantities of pipe beveling process
3、4 tool level design, used for more processing conditions

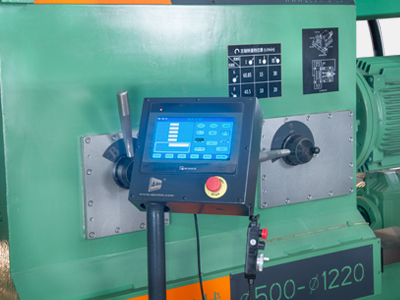

4、Operate in touch screen, one button to move automatically, operate easily.
5、Can match pipe positioning system to achieve pipeline beveling process.
6、Machine up/down design, perfectly adapted to different diameter in the same pipe conveyer

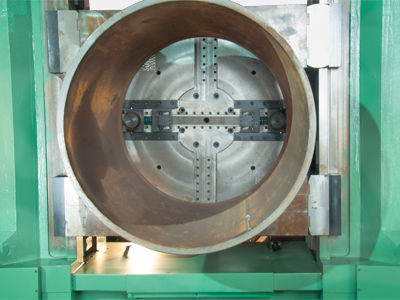

7、Hydraulic clamping, double V clamping block, clamping at same time by hydraulic cylinder
8、Clamping force: adjustable from 0.5 ton to 20 ton, suitable for pipe with different wall thickness
9、5 models are available in pipe OD:25.4-1220mm
CAPABILTY
1、Pipe end beveling
2、Compound beveling
3、Counterboring
4、Pipe facing

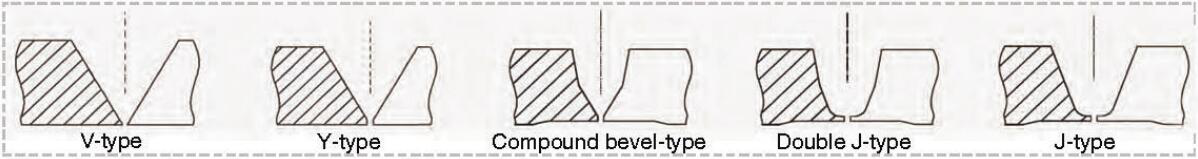

BEVELING SHAPE
*other beveling shape, angle and pipe material, please declare before order
|
Model |
Range |
Thickness |
Mix.length |
Rotating |
Motor Power kw |
||||
|
OD mm |
I mm |
II mm |
mm |
rpm |
Cutting |
Clamping |
feeding |
Up/down |
|
|

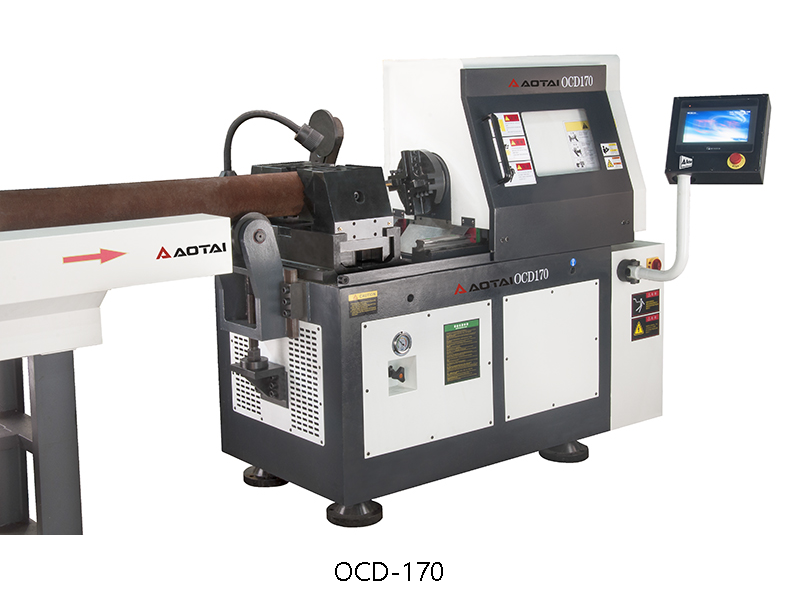

OCD-170 |
25.4-168 |
4-20 |
4-40 |
250 |
200 |
5.5 |
0.5 |
0.75 |
1.1 |
|
OCD-325 |
50-325 |
5-20 |
5-50 |
250 |
140 |
5.5 |
0.5 |
0.75 |
1.1 |
|
OCD-630 |
219-610 |
6-25 |
6-60 |
400 |
90 |
7.5 |
2.2 |
0.75 |
- |
|
OCD-830 |
323-830 |
8-25 |
8-80 |
500 |
70 |
11 |
2.2 |
2.0 |
- |
|

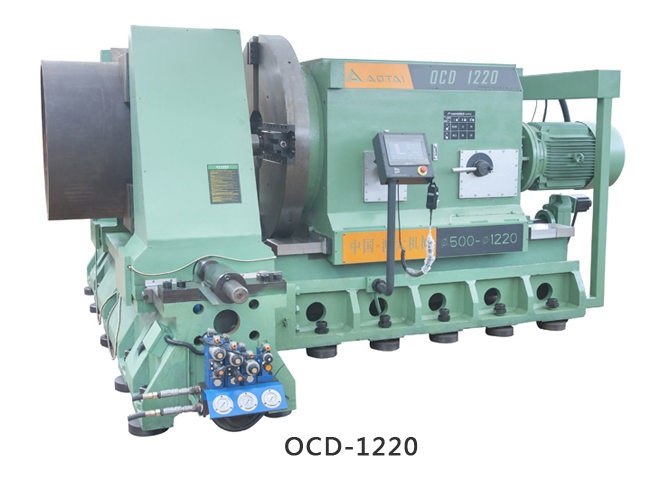

OCD-1220 |
508-1220 |
10-30 |
10-100 |
700 |
60 |
22 |
2.2 |
2.0 |
- |
Above parameters just for reference only, not acceptance criteria
Power requirement：380V,50-60Hz,3P
Up/down travel:300mm
Feeding travel:150-500mm
feeding:0-1000mm/min
Tool post quantity： 4
Angle deviation：±0.5
Vertical deviation：±0.5mm @300mm pipe OD
|
Material |
51*4.5MM |
63*6MM |
89*8MM |
114*10MM |
159*10MM |
|
Carbon steel |
8S |
9S |
16S |
20S |
36S |
|
Stainless steel |
8S |
9S |
18S |
22S |
40S |
Example:OCD-170 machine,30degree beveling
Above beveling time excluding initial time of install and adjust time.
5s for clamping,15s feeding with no-load,5s for clamping and releasing
Options of form type and insert type tools
Available for cutting all thickness and material of pipe and beveling at any required angle.|

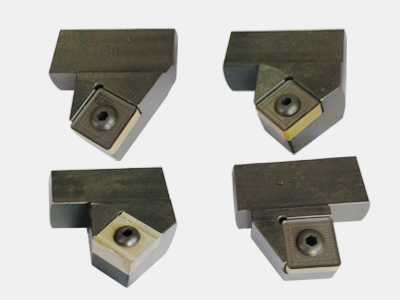

Insert Type |
|
Material: Tool holder:40Cr ; Insert: CSS or Carbide kinds：Cut off，beveling，Double beveling，Compound beveling Angle：0°，30°，37.5°，double 30°/37.5°，37.5°+10° |
 |
OPTION PIPE CONVEYER
According to the need to customize.
Optional pipe conveyer and automatic length setting systems, be formulated with highly efficient logistics system, and form
pipe cutting and beveling prefabricated production line
*Customizable size and option the automatic or manual feeding.
|

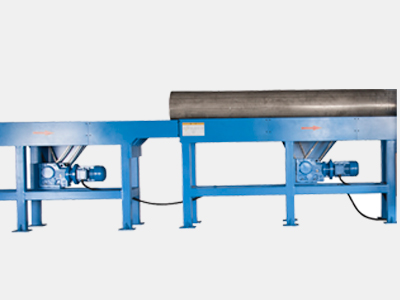

Input pipe conveyer |

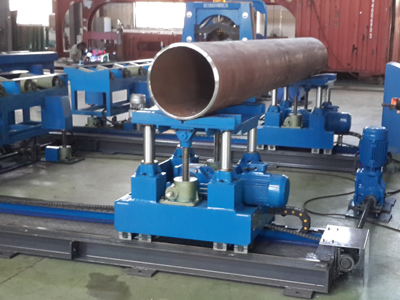

Exchange system |
 |
|
|
|
|
